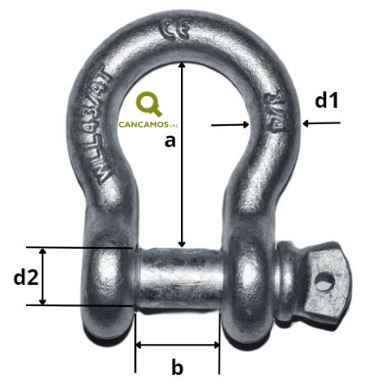

| Cuerpo Ød1 | Rosca Ød2 | Altura libre a mm | Boca libre b mm | Carga de trabajo Kgrs |
|---|---|---|---|---|
| 1/4" | 5/16" | 26 | 11 | 500 |
| 5/16" | 3/8" | 37 | 13 | 750 |
| 3/8" | 7/16" | 45 | 16 | 1000 |
| 7/16" | 1/2" | 41 | 18 | 1500 |
| 1/2" | 5/8" | 48 | 21 | 2000 |
| 5/8" | 3/4" | 60 | 27 | 3250 |
| 3/4" | 7/8" | 69 | 33 | 4750 |
| 7/8" | 1" | 85 | 35 | 6500 |
| 1" | 1,1/8" | 94 | 42 | 8500 |
| 1,1/8" | 1,1/4" | 103 | 45 | 9500 |
| 1,1/4" | 1,3/8" | 117 | 48 | 12000 |
| 1,3/8" | 1,1/2" | 130 | 59 | 13500 |
| 1,1/2" | 1,5/8" | 143 | 62 | 17000 |
| 1,3/4" | 2" | 226 | 73 | 25000 |
| 2" | 2,1/4" | 253 | 82 | 35000 |
