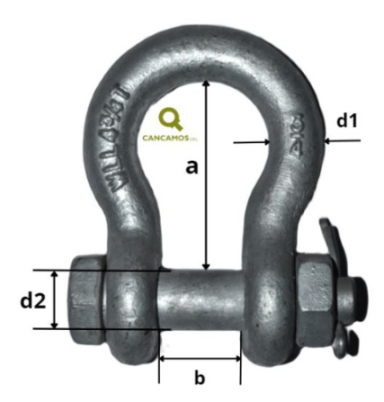

| Cuerpo Ø d1BSW" mm | 5/16" | 3/8 | 7/16" | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1,1/8" | 1 1/4 | 1 3/8" | 1 1/2" | 1 3/4" | 2" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 10 | 11 | 12 | 16 | 19 | 22 | 25 | 28,5 | 32 | 35 | 38 | 51 | 57 | |
| Rosca Ø d2 BSW" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4 | 7/8" | 1" | 1 1/8" | 1 1/4 | 1 3/8" | 1 1/2" | 1 5/8 | 2" | 2 1/4" |
| Altura libre a mm | 31 | 36 | 41 | 48 | 60 | 69 | 85 | 94 | 103 | 117 | 130 | 143 | 180 | 197 |
| Boca libre b mm | 13 | 16 | 18 | 21 | 27 | 33 | 35 | 42 | 45 | 48 | 59 | 62 | 73 | 82 |
| Carga de trabajo Kgrs | 750 | 1000 | 1500 | 2000 | 3250 | 4750 | 6500 | 8500 | 9500 | 12000 | 13500 | 17000 | 25000 | 35000 |
