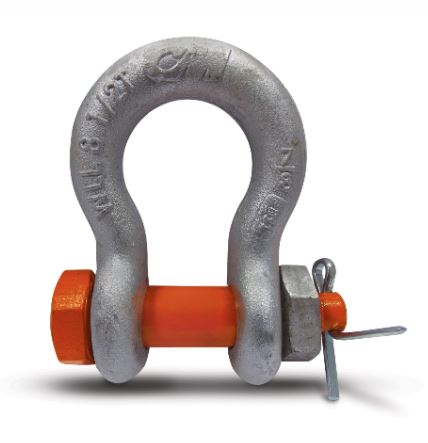

COEFICIENTE 6:1
MARCA COLUMBUS MCKINNON
| Ø CUERPO (pulg.) | Ø PERNO (pulg.) | DIMENSIONES (mm) | CARGA DE TRABAJO (TN) | ||||
|---|---|---|---|---|---|---|---|
| E | W | R | L | B (min.) | |||
| 1/2 | 5/8 | 17.7 | 21.3 | 33 | 49.2 | 35 | 2 |
| 5/8 | 3/4 | 21 | 26.9 | 42.1 | 61.2 | 34.5 | 3.25 |
| 3/4 | 7/8 | 24 | 32.5 | 49.2 | 72.1 | 48 | 4.75 |
| 7/8 | 1 | 27.6 | 36.5 | 54.3 | 84 | 52.3 | 6.5 |
| 1 | 1.1/8 | 30.9 | 43.6 | 61.9 | 95.2 | 64 | 8.5 |
| 1.1/8 | 1.1/4 | 34.5 | 46.7 | 67.5 | 102 | 68.3 | 9.5 |
| 1.1/4 | 1.3/8 | 38.6 | 51.5 | 80 | 117.6 | 73 | 12 |
| 2 | 2.1/4 | 60.4 | 83.3 | 114.5 | 188.9 | 139.7 | 55 |
| 2.1/2 | 2.3/4 | 85 | |||||
