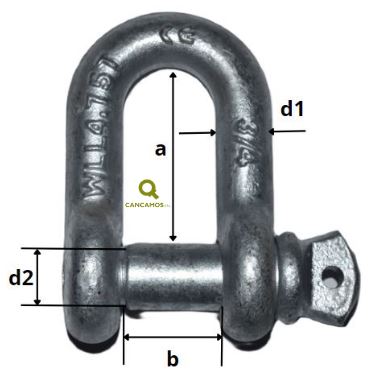

| Cuerpo Ø d1 | 5/16" | 7/16" | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1,1/8" | 1,1/4" | 1,3/8" | 1,1/2" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rosca Ø d2 | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 1" | 1,1/8" | 1,1/4" | 1,3/8" | 1,1/2" | 1,5/8" |
| Altura libre a mm | 29 | 37 | 41 | 51 | 61 | 68 | 81 | 93 | 96 | 122 | 125 |
| Boca libre b mm | 13 | 19 | 24 | 26 | 33 | 35 | 42 | 48 | 50 | 55 | 63 |
| Carga de trabajo Kgrs | 750 | 1500 | 2000 | 3250 | 4750 | 6500 | 8500 | 9500 | 12000 | 13500 | 17000 |
