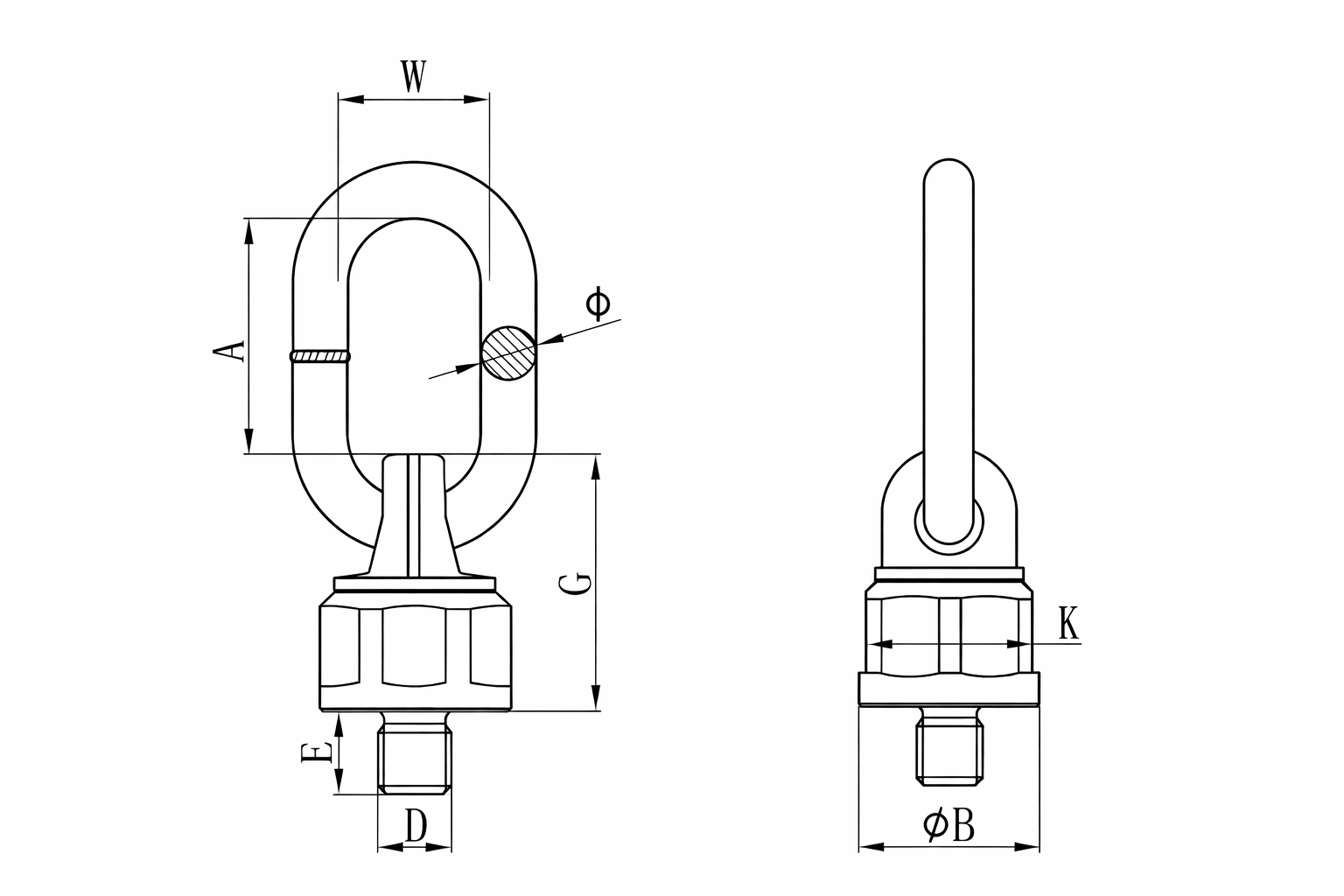

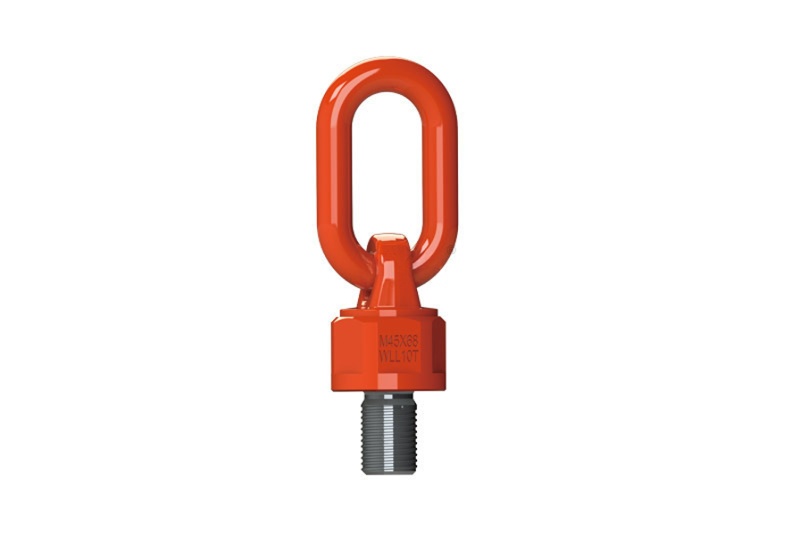

| ROSCA x PASO | DIMENSIONES (mm) | Carga de trabajo (TN) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | G | W | K | Ø | E | 90° | 0° | |
| M16 x 2.00 | 47.2 | 36 | 52 | 30 | 33.4 | 13 | 31.8 | 1.5 | 2.6 |
| M20 x 2.50 | 72.8 | 60 | 81 | 40 | 54.2 | 18 | 30 | 2.5 | 4 |
| M24 x 3.00 | 72.8 | 60 | 81 | 40 | 54.2 | 18 | 30 | 4 | 7 |
| 3/8 x 16 | 47.2 | 36 | 52 | 30 | 33.2 | 13 | 19 | 0.6 | 0.9 |
| 5/8 x 11 | 47.2 | 36 | 52 | 30 | 33.2 | 13 | 31.7 | 1.5 | 2.6 |
| 1 x 8 | 72.8 | 60 | 81 | 39.8 | 54 | 18 | 29.9 | 4 | 7 |
